Product Details
＋SPECIFICATION
| Panel Type | 7″ capacitive touch screen |
| Case Type | Ruggedised plastic |
| Maximum Resolution | 1920×1200 |
| IP Camera Test | IP discovery, ONVIF,IPC test,POE power output, Hik, Dahua, Chrome |
| WI FI | Built in, speed 150M, wireless camera display |
| Work Humidity | 30 % – 90 % |
| Work Temperature | -10 to 50 °C |
| Power On/Off | Auto 5 – 30 mins |
IN/OUT INTERFACE
| CVBS | 1 x BNC in, 1 x BNC out Analogue video level meter, peak video signal level SYNC level, colour bar chroma level PTZ control RS485 , baud rate 600 – 115200bps, Compatible with Pelco D/P, Samsung, Panasonic etc. One channel colour bar generator PAL/NTSC |
| Co axial HD test | 8MP TVI, 8MP CVI / AHD, 8MP HD-SDI, EX-SDI |
| HDMI input | 1 channel HDMI input supports 1080P |
| HDMI output | 1 channel HDMI output supports 1080P |
| Cable test function | UTP , RJ45,TDR(optional),cable trace(optional) |
| Audio | 1 channel audio test function. Headphone socket |
| Power On / Off | Auto 5 – 30 mins |
| Audio Interface | 1 channel audio test function. Headphone socket |
| Storage | 8Gb SD card function |
| Stand Type | Desk |
| Colour | Blue |
| Weights and Dimensions | 240 x 154 x 46mm |
| GROSS Weight | 620 g |
POWER
- Power Supply: 12v DC 2 Amp
- Battery: 57Wh polymer lithium battery, With 23W charger, fully charged 4~5 hours
- Battery Life: After full charge(4-5 hours) normally 16 hours working time.
POWER OUT
- DC24v 2A: Temporary camera supply, short circuit protection
- DC12v 3A: Temporary camera supply
- PoE: 48v PoE output max 25.5W
- DC5v 2A: USB out put as power bank only
OSD LANGUAGE
English, Chinese, Korean, Russian, Italian, French, Polish, Spainish, Japanese, German, Turkish, Serbian, Czech, Portuguese
ACCESSORIES
UK 12v DC charger,3x carrying straps,BNC to BNC cable,DC 12v3A output cable, RS485 cable tester lead, audio test lead, RJ45 cable tester, carry case.

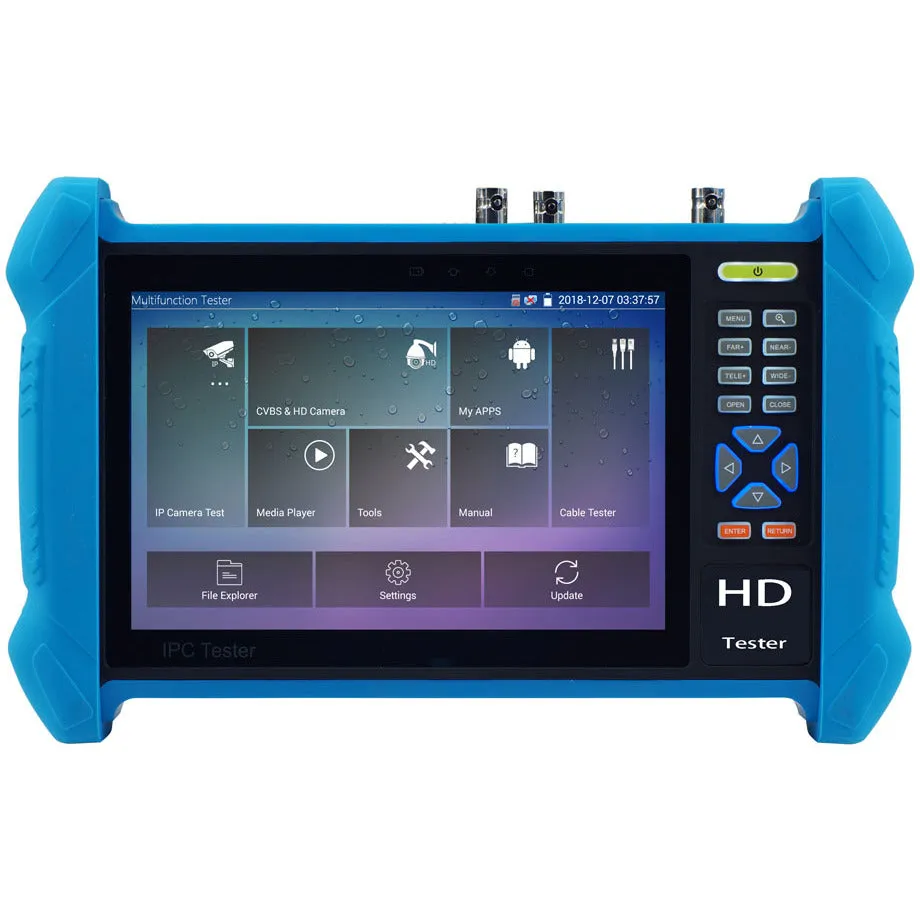

- OSD: Main function icons for: IP camera test,CVBS and HD camera test, Cable test, Media player,Tools,My Apps, User manual, Update. Select main icon to enter sub menu. Also icons for file explorer, settings and theme
- IP camera test: IP discovery, ONVIF, IPC test, POE power output, Hik, Dahua, Chrome
- CVBS and HD: CVBS,TV out,8MP CVI, 8MP AHD, 8MP TVI, 8MP SDI
- Cable test: Cable tester, RJ45 TDR test
- Media player: HDMI in, Audio record, audio player, video player, RTSP player
- Tools: Network tool, PoE & power info, Quick Office,Data monitor, flashlight, calculator
- My Apps: Rapid video,Rapid IP discovery,iVMS4500HD,gDMSS HD lite,VLC,EZ View,Droi Notes, XMEye
